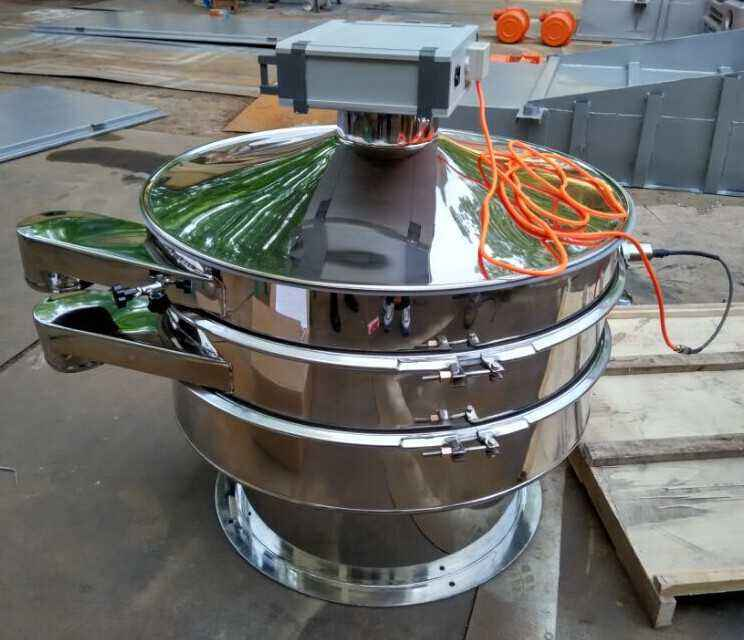

Ultrasonic Vibrating Screen
Cov lus piav qhia rau CSB Ultrasonic Vibrating Screen
CSB Ultrasonic vibrating npo (Ultrasonic vibrating sieve) yog los hloov 220v, 50HZ los yog 110v, 60HZ hluav taws xob zog rau hauv 38KHZ high-frequency hluav taws xob zog, input lub ultrasonic transducer, thiab tig nws mus rau hauv 38KHZ mechanical vibration, thiaj li mus cuag lub hom phiaj ntawm npaum kev tshuaj ntsuam thiab kev tu huv.Cov kev hloov kho qhia txog qhov tsawg-amplitude, high-frequency ultrasonic vibration nthwv dej (mechanical yoj) ntawm lub vijtsam raws li lub hauv paus ntawm lub vijtsam vibrating ib txwm, thiab superimposes lub siab-tsawg-amplitude ultrasonic vibrator ntawm lub vijtsam, thiab ultra- hmoov zoo tau txais kev txhawb nqa ultrasonic loj., yog li ntawd cov khoom ntawm qhov screen yog ib txwm nyob rau hauv lub xeev ncua, yog li inhibiting adhesion, kev sib txhuam, leveling, thiab lwm yam thaiv.Nws daws cov teeb meem kev tshuaj ntsuam xws li muaj zog adsorption, yooj yim agglomeration, hluav taws xob zoo li qub, siab precision, siab ceev, lub teeb tshwj xeeb lub ntiajteb txawj nqus, thiab lwm yam, ua rau kev tshuaj ntsuam ntawm ultra-nplua hmoov tsis nyuaj, tshwj xeeb tshaj yog haum rau cov neeg siv khoom zoo. thiab hmoov zoo.
Paub meej specification
| Qauv | CSBultrasonicvibrating npo |
| Tshuab Dia | 400mm-1800mm ib |
| Tshuab Khoom | Carbon Steel, SUS304 / SUS316L |
| Txheej (s) | 1-4 Txheej |
| Mesh Loj | 1-600 Mesh |
| Ultrasonic ntaus ntawv voltages | Ib theem 220V |
| Daim ntawv thov | Noj hmo zoo hmoov / Viscidity hmoov |
| Hs Code | 8474100000000000 |
Daim ntawv thov
CSB Ultrasonic Vibrating Screen yog dav siv hauv metallurgy hmoov, cov khoom siv hluav taws xob, hlau hmoov, hlau hmoov, zinc oxide, alumina hmoov, alloy hmoov, molybdenum hmoov, cobalt hmoov, carborundum, tooj liab, npib tsib xee hmoov, silica hmoov, titanium oxide, tungsten carbide , tungsten hmoov, titanium hmoov, stainless hlau hmoov thiab lwm yam.
Daim ntawv Parameter
| Qauv | Lub zog (KW) | Txheej | Tshuab Diameter (mm) | Qhov Loj (mm) |
| SIB-400 | 0.18 | 1-5 | 320 | 420 * 420 * 580 hli |
| SIB-600 | 0.55 ib | 1-5 | 550 | 580 * 580 * 680 hli |
| SIB-800 | 0.75 ib | 1-5 | 750 | 800 * 800 * 680 hli |
| SIB-1000 | 1.5 | 1-5 | 950 ua | 900 * 900 * 780 hli |
| SIB-1200 | 1.5 | 1-5 | 1150 | 1160 * 1160 * 880 hli |
| SIB-1500 | 2.2 | 1-5 | 1450 | 1360 * 1360 * 980 hli |
| SIB-1800 | 2.2 | 1-5 | 1750 | 1850 * 1850 * 1130 hli |
Yuav ua li cas kom paub meej tus qauv
1.) Yog tias koj tau siv lub tshuab, Pls muab tus qauv ncaj qha rau kuv.
2.) Yog tias koj tsis tau siv lub tshuab no lossis koj xav kom peb pom zoo, Pls muab cov ntaub ntawv rau kuv raws li hauv qab no.
2.1) Cov khoom koj xav kom sieve.
2.2).Lub peev xwm (Tons / Teev) uas koj xav tau?
2.3) Cov txheej ntawm lub tshuab?Thiab mesh loj ntawm txhua txheej.
2.4) Koj lub zos voltages
2.5) Qhov kev thov tshwj xeeb?
Ntim thiab Shipping
Ntim:Ntoo rooj plaub los yog raws li koj xav tau.
Lub sij hawm xa tuaj:Tus qauv qauv siv 3-5 hnub ua haujlwm.No-tus qauv siv sijhawm 5-7 hnub ua haujlwm.
